Part Number
|
Length
|
Connectors
|
Application
|
 |
11100 |
1,8m. |
"A"
Male
|
"B"
Male
|
- To connect USB port A
type to equipment with type B port.
|
|
|
11105
|
1,8m.
|
"A"
Male
|
"B"
Male
|
To connect at
high speed USB v. 2.0 port A
type to equipment with type B port. |
| 11106
|
3,0m.
|
| 11107
|
4,8m.
|
 |
11115 |
1,8m. |
"A"
Male
|
"A" Female
|
- USB
1.0 - Extension Type A x A
- Extend your USB 1.0 cable.
Type A male x A female
connectors.
|
| 11116 |
3,0m. |
|
11132 |
6,0m. |
|
11134 |
1,8m. |
- USB
2.0 - Extension Type A x A
- Extend your USB 2.0 cable.
Type A male x A female
connectors.
|
|
11135 |
3,0m. |
|
11136 |
4,0m. |
|
11110 |
1,8m. |
"A"
Male
|
Mini B-5
|
To connect USB type A port
of your computer or Hub to USB devices with mini B female conector.
See more instructions clicking here:
|
| 11112 |
1,8m. |
"A"
Male
|
Mini
B-4
|
| 11111 |
1,8m. |
"A"
Male
|
Mini B-8
|
 |
11131 |
4,8m. |
"A"
Male
|
"A" Female
|
USB Cable is a transceiver, rebuilding and
transmiting USB
signals to USB 2.0 equipments, at speeds of 12 up to 480 Mbps. Can
be cascated allowing a connection of long distance.
|
 |
11117 |
0,04m. |
"A" Female
|
"A" Female
|
- A Female x A Female
Changer
To convert an USB Male port
to Female. Connectors type A.
|
 |

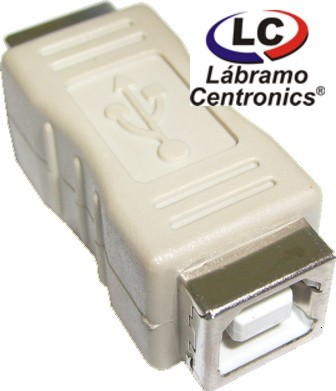

11127 |
0,04m |
"B" Female
 |
"B" Female
|
- B Female x B Female
Changer
To convert an USB Male port
to Female. Connectors type B.
|
 |

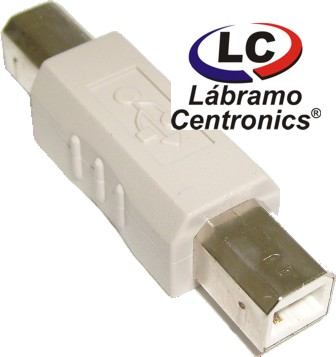

11128 |
0,04m |
"B"
Male
|
"B"
Male
|
To convert an USB Female
port to Male. Connectors type B.
|
|
|
11129 |
0,04m |
"A" Female
|
"B" Female
|
Change USB Male to Female
conectors. Also changes A type to B and vice-versa.
|
 |
11118 |
0,04m |
"A" Female
|
"A"
Male
|
- A Female x A
Male Adaptor
Provide an extension to USB
port. Connector type A.
|
| 11121 |
0,04m |
"A"
Male
|
"B" Female
|
- A Male x B
Female Adaptor
To convert A type to B or
in another way from B to A.
|
| 11122 |
0,04m |
"A" Female
|
"B"
Male
|
- A Female x B
Male Adaptor
To convert A type to B or
in another way from B to A.
|
|
 |
11123 |
0,04m |
"A" Fêmea
|
MDin Macho
|
- A Female x
PS2 Male Adaptor
Connect your USB
mouse or keyboard to PS2 port.
*
Keyboards or mouses Dell, IBM and Microsoft
are not compatibles. |
|
|
 |
11119 |
0,2m. |
"A" Female
|
"A" Female
|
- USB Internal Cable Output
Cable to connect PCChips motherboards. USB output
to backpanel. Two connections type A.
|
|
|
11120 |
0,2m. |
"A" Female
|
"A" Female
|
- USB Internal Cable Output
Cable to connect
motherboard USB output
to backpanel. Two connections type A.
|
 |
11125A |
0,5m. |
"A"
Male
|
P2
Male
|
To connect in a peripheral
P2 type power supply through USB port. 5Vdc, 300mA.
|
| 11125B |
"A"
Male
|
P4
Male
|
To connect in a peripheral
P4 type power supply through USB port. 5Vdc, 300mA.
|
 |
11152 |
1,8m |
"A"
Male
|
"A"
Male
|
USB file transfer between PCs. Connection peer to peer, at maximum
480 mbps USB v.2.0 high speed. Win 98/2000/ME/XP compatible.
|
|
|

| FireWire
|
Part Number
|
Length
|
Connectors
|
Application
|
 |
11200
|
1,8m.
|
6
x 6
|
- IEEE1394 compliant,
these cables are to connect FireWire peripherals at high troughput of
400 Mbps.
|
| 11210
|
3,0m.
|
| 11201 |
1,8m.
|
6
x 4
|
| 11211 |
3,0m.
|
 |
11202 |
1,8m.
|
4
x 4
|
| 11212 |
3,0m.
|
|
11203 |
1,8m. |
9
x 4
|
|
11204 |
1,8m. |
9
x 6 |
