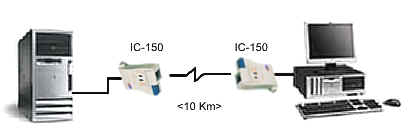

IC 150 is a micro-modem used as a simple serial amplificator when you need to transfer your data at distances up to 10 Km. Using 4 wire full-duplex or 2 wire simplex cable you can connect two RS-232 devices  easy and at low cost. Suports DCE, DTE and Loop Back mode. Easy to install and set up. Self powered.

Features :

  • There is no special operation, easy to install and to use.

  • No software needed.

  • RS232 compatible - CCITT V24.

  • 10 Km. at 110 bps

  • 800m. at 19.200 bps

Technical Specifications
Product code

50350
Model

IC 150
CPU to IC 150 distance  10m.
Max. distance between ICs (at 110 bps)  10 Km.
CPU connector DB 25 Female
Transmission Max. speed 110 up to 38400 bps
Switch 1 DCE, DTE, Loop Back
Switch 2  Full duplex , simplex
Cable to use Conventional, telephone wire 4 conductors.
Power Self-powered
Case Plastic
Weight 60 g
Dimensions 70 x 50 x 20 mm



Pictures may not represent the real  appearance of the product.
